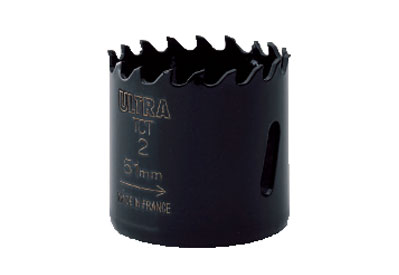

Utilisation : Percage de tous les nnateriaux abrasifs tels que fibre de verre, cloisons et platre, ceramique, plastiques renforces. Vitesse de coupe elevee, grande resistance.
Caracteristiques : Dents en carbure de tungstene soudees et affOtees sur un corps en acier trait&
USE : Drilling all abrasive materials such as fiber glass, partitions and plaster, ceramics, reinforced plastics. High speed cutting and resistance.
Characteristics : Solid sharpened carbide teeth welded to a one treated steel body, laser marking.
| CD ULTRA - TCT | O (mm) | O (pouce) | MANDRIN CHUCK |
| TCT 19 | 19 | 3/4 | SC 3 ou/or SC 3R ou/or SD3 ou/or TC 1 TC 2 R TC 3 |
| TCT 21 | 20,7 | 13/16 | |
| TCT 22 | 22,2 | 7/8 | |
| TCT 24 | 23,8 | 15/16 | |
| TCT 25 | 25,4 | 1 | |
| TCT 27 | 27 | 1 1/16 | |
| TCT 29 | 28,6 | 1 1/8 | |
| TCT 30 | 30,2 | 13/16 | |
| TCT 32 | 31,8 | 1 1/4 | |
| TCT 35 | 34,9 | 13/8 | |
| TCT 38 | 38,1 | 1 1/2 | |
| TCT 40 | 39,7 | 1 9/16 | |
| TCT 41 | 41,3 | 1 5/8 | |
| TCT 43 | 42,9 | 1 11/16 | |
| TCT 44 | 44,5 | 1 3/4 | |
| TCT 51 | 50,8 | 2 | |
| TCT 54 | 54 | 2 1/8 | |
| TCT 57 | 57,2 | 2 1/4 | |
| TCT 60 | 60,3 | 2 3/8 | |
| TCT 64 | 63,5 | 2 1/2 | |
| TCT 65 | 65,1 | 2 9/16 | |
| TCT 70 | 69,9 | 2 3/4 | |
| TCT 79 | 79,4 | 3 1/8 | |
| TCT 83 | 82,6 | 3 1/4 | |
| TCT 89 | 88,9 | 3 1/2 | |
| TCT 92 | 92,1 | 3 5/8 | |
| TCT 95 | 95,3 | 3 3/4 | |
| TCT 102 | 101,6 | 4 | |
| TCT 105 | 104,8 | 4 1/8 | |
| TCT 152 | 152,4 | 6 |
